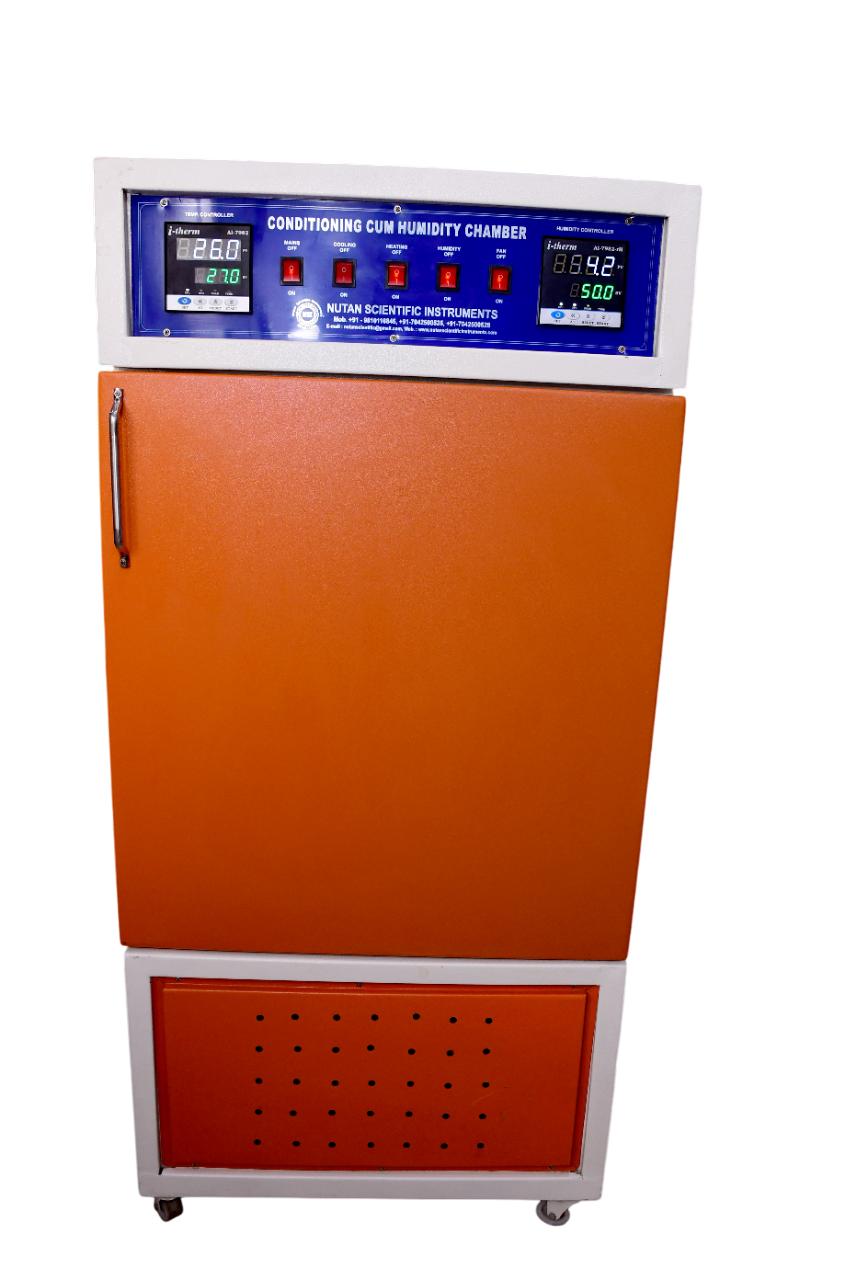

Digital Conditioning Cum Humidity Chamber (Temperature: -20⁰C to 0⁰C to 50⁰C, Humidity: 45% to 95% RH)
Technical Specifications:
Temperature Range:
From -20°C to 0°C to +50°C
Humidity Range:
From 45% to 95% Relative Humidity (RH)
Temperature Accuracy: ±0.5°C
Humidity Accuracy: ±3% RH
Display: Digital dual display for both temperature and humidity
Construction Details:
Inner Chamber: Stainless Steel (Corrosion-resistant and easy to clean)
Inner Chamber Size: 18″L × 18″W × 24″H
Outer Body: Powder-coated Mild Steel (Durable and insulated)
Outer Dimensions: 56″H × 34″W × 27″L
Insulation: High-density PUF insulation for energy efficiency
Door: Airtight with magnetic gasket to prevent leakage
Shelves: Adjustable stainless-steel shelves for flexible sample arrangement
Control System:
Microprocessor-based PID Controller for precise temperature and humidity control
Humidity Generation:
Humidity is generated through an in-built stainless steel water tank provided inside the chamber. Water is filled into the tank, and the controlled evaporation system maintains the required humidity level inside the chamber.
