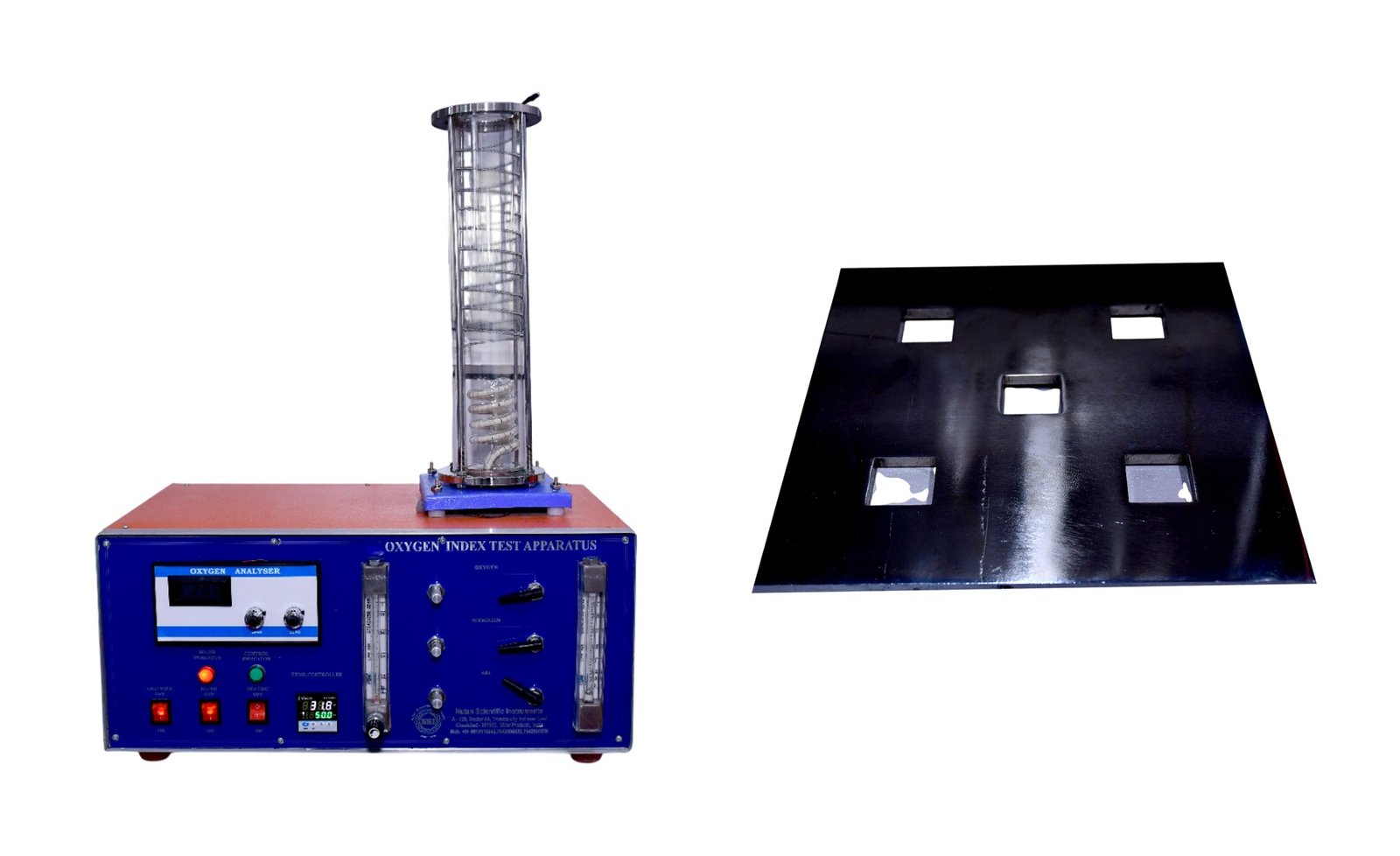

Oxygen Index Apparatus (Galvanic Sensor) with Sample Plate
Product Description
The Oxygen Index Apparatus is designed to determine the minimum oxygen concentration required to support combustion of materials under controlled conditions. Equipped with a high-accuracy galvanic oxygen sensor, digital oxygen analyzer, and adjustable gas flow control system, it ensures accurate and reliable testing. The apparatus features a double-walled glass test column, digital temperature controller, and sample holding arrangement for testing various materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Oxygen Sensor | Galvanic Type Oxygen Sensor |
| Oxygen Measurement | Digital Display |
| Oxygen Resolution | 0.1% |
| Oxygen Accuracy | 0.1% (as specified) |
| Test Column | Double-Walled Flame-Resistant Glass |
| Column Diameter | 75 mm |
| Temperature Controller | Digital Temperature Controller |
| Temperature Sensor | RTD Sensor |
| Gas Control | Adjustable Oxygen & Nitrogen Flow Meters |
| Gas Regulation | Individual Control Valves |
| Sample Holding | Sample Holder with Hanger |
| Ignition System | Ignition Torch |
| Testing Modes | Two Testing Modes |
| Standards | ASTM and Other Applicable International Standards |
Key Features
- High-accuracy galvanic oxygen sensor with digital readout.
- Direct measurement of oxygen concentration.
- Double-walled glass test column for safe and reliable testing.
- Digital temperature controller for temperature monitoring.
- Adjustable oxygen and nitrogen flow control.
- RTD sensor for accurate temperature measurement.
- Sample holder suitable for different sample shapes.
- User-friendly operation and reliable performance.
Standard Accessories
- Digital Oxygen Analyzer (Galvanic Sensor Based).
- Double-Walled Glass Test Column with Heating System.
- Digital Temperature Controller.
- RTD Temperature Sensor.
- Oxygen and Nitrogen Flow Meters with Control Valves.
- Ignition Torch.
- Sample Holder with Hanger.
- Sample Plate.
Sample Plate for Oxygen Index Apparatus
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Mild Steel / Stainless Steel |
| Surface Finish | Black Powder Coated / Rust-Resistant Finish |
| Plate Size | Approx. 150 × 150 mm |
| Thickness | Approx. 3 mm |
| Hole Shape | Square |
| Number of Holes | 5 |
| Hole Size | Approx. 25 × 25 mm |
| Hole Arrangement | Symmetrical Cross Pattern |
Sample Plate Features
- Durable and reusable construction.
- Heat and corrosion-resistant material.
- Precisely designed cut-outs for sample positioning.
- Smooth surface for easy cleaning.
- Ensures proper sample support during testing.
Applications
- Oxygen Index Testing of Plastic Materials.
- Testing of Rubber and Polymer Products.
- Flammability Testing of Cable Insulation.
- Evaluation of Combustion Characteristics.
- Quality Control and Research Laboratories.
Customization: Sample plate material, dimensions, and design can be customized as per customer requirements.
