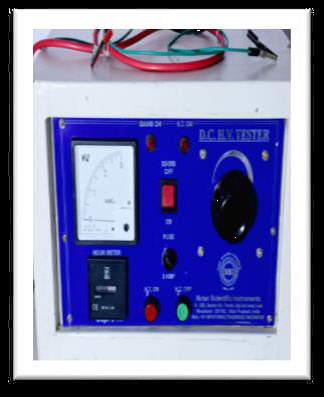

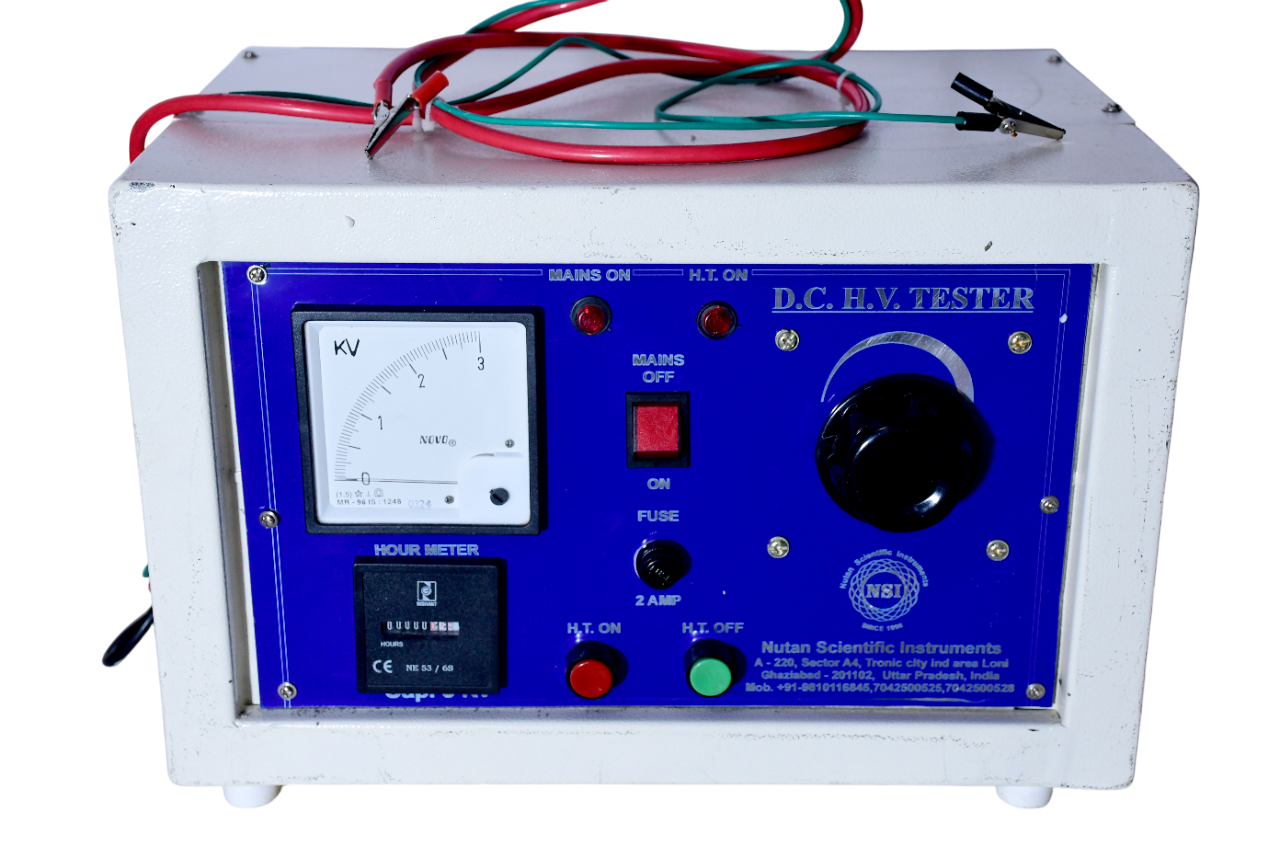

DC High Voltage Tester (0–3 kV / 50 mA)
Technical Specifications
- Input Supply: 220–230V AC, 50 Hz, Single Phase
- Output Voltage Range: 0.05 kV to 3 kV DC
- Output Control: Stepless Voltage Control
- Cooling System: Natural Air Cooling
- Duty Cycle: Continuous Duty for extended testing applications
- Metering: Digital Voltmeter & Digital mA Meter (HT Side)
Cables
- HT Output Cable: 5-meter copper braided cable with HT plug & socket
- LT Input Cable: 10-meter, 3-core heavy-duty input cable
Protection Features
- Zero Start Interlock
- Earth Interlock
- Over Voltage Protection with Auto Trip
- Automatic Cable Discharge Arrangement
- Surge & Spike Protection
- Meter Protection for Voltmeter and mA Meter
Construction & Design
- Custom-built HT socket with automatic earthing mechanism
- Indications for Mains ON, HT ON and Trip/Fault
- Optional audible buzzer on request
Standard Accessories
- 5 m HT Cable with Plug & Socket
- 10 m LT Input Cable
- Digital Voltmeter (0–3 kV DC)
- Digital mA Leakage Current Meter
- Operator Manual
- Calibration Certificate (On Request)
