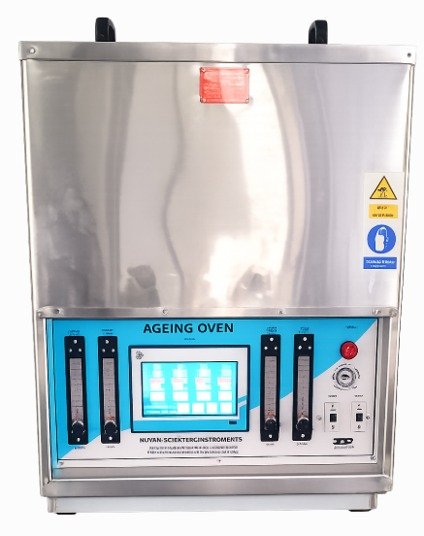

Digital Four Ageing Oven (Data Logger Type)
Product Description
The Digital Four Ageing Oven (Data Logger Type) is designed for heat ageing tests of rubber, plastic, and polymer materials under controlled temperature and air circulation conditions. It features four independent ageing cells, an inbuilt data logger for temperature monitoring, and a built-in air supply system for reliable and efficient testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Inner Chamber Size | 350 × 350 × 350 mm |
| Number of Cells | 4 Separate Ageing Cells |
| Cell Size | Approx. 300 mm Height × 100 mm Diameter |
| Temperature Range | Ambient to 200°C |
| Temperature Accuracy | ±1°C |
| Temperature Resolution | 0.5°C |
| Data Logger | Inbuilt Data Logger for Temperature Recording |
| Air Changes | 8–20 Air Changes per Hour |
| Air Supply | Built-in Air Source |
| Operation | Independent Operation of Each Cell |
| Power Supply | 230V AC, 50 Hz, Single Phase |
Control Panel Features
- Individual Flow Meter for Air Circulation.
- Hour Meter for Test Duration Monitoring.
- Separate Heater and Air Flow ON/OFF Controls.
- Inbuilt Data Logger for Temperature Recording and Monitoring.
Key Features
- Four independent ageing cells.
- Inbuilt temperature data logging system.
- Built-in air source; no external compressor required.
- High-efficiency thermal insulation.
- Individual control of each ageing cell.
- Reliable temperature monitoring and recording.
Applications
- Heat ageing tests of rubber and plastic materials.
- Testing of cable insulation materials.
- Evaluation of material properties after heat exposure.
- Quality control and laboratory testing.
