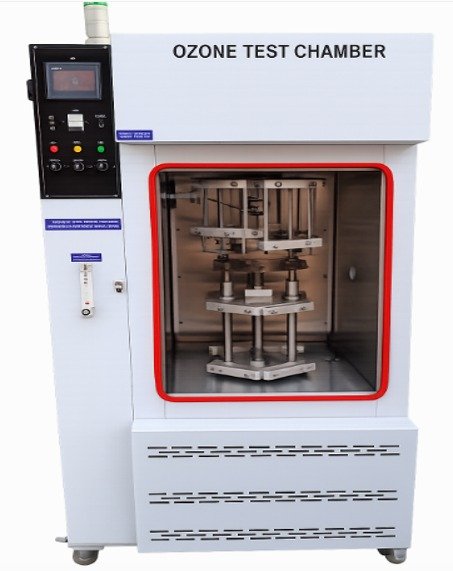

Ozone Test Chamber
Product Description
The Ozone Test Chamber is designed to evaluate the ozone resistance and durability of rubber, polymer, and elastomer materials under controlled environmental conditions. It provides precise control of temperature, humidity, and ozone concentration through an advanced 7-inch TFT touchscreen HMI. Its uniform air circulation and stainless-steel inner chamber ensure reliable and consistent testing performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Chamber Construction | Double-Walled Construction |
| Inner Chamber Material | SS 304 Stainless Steel |
| Outer Body Material | Mild Steel with Electrostatic Powder Coating |
| Inner Chamber Dimensions | 600 × 600 × 600 mm (W × D × H) |
| Display & Controller | 7-Inch TFT Touch Screen HMI |
| Temperature Range | 20°C to 80°C |
| Humidity Range | 30% RH to 70% RH |
| Ozone Concentration Range | 0–100 ppm |
| Ozone Concentration Accuracy | ±10 ppm |
| Air Exchange Rate | 5–10 Air Changes per Hour |
| Air Circulation | Uniform Air Circulation System |
| Operation | Electrically Operated |
| Temperature Control | Thermostatically Controlled |
| Power Supply | 220–230 V AC, 50 Hz, Single Phase |
Key Features
- Advanced 7-inch TFT touchscreen control system.
- Precise control of temperature, humidity, and ozone concentration.
- SS 304 stainless-steel inner chamber for corrosion resistance.
- Uniform air circulation for consistent testing conditions.
- Adjustable air exchange rate.
- Robust double-walled construction.
- User-friendly operation and digital monitoring.
Applications
- Ozone resistance testing of rubber materials.
- Testing of polymer and elastomer products.
- Evaluation of rubber seals, hoses, and gaskets.
- Quality control in rubber and plastic manufacturing industries.
- Research and material testing laboratories.
