Specifications
-
Capacity: 250 Kgf / 2500 N / 2.5 kN
- Grip Type: One pair of vice-type grips
-
Motor: High-quality 3-phase motor (Branded New)
-
Control Panel:
-
Forward
-
Reverse
-
Stop
-
-
Operation: Smooth upward & downward movement
-
Additional Options:
-
Variable speed
-
Elongation measurement system
-
Computerized
- Extensometer
-
-
Construction: Heavy-duty, rigid frame for stable load application
-
Applications: Metals, plastics, cables, rubber, polymers, components, and raw materials
- IS Standards: IS 7092(Part1):1992 , IS 7092(Part2):1987, IS 5484:1997 , IS 733:1983 , IS 1816:1961 , IS 734:1975 , IS 736:1986 , IS 737:2008 , IS 739:1992 , IS 740:1977 , IS 5082:1998 , IS 2067:1975, IS 694, JSS 51034
Product Description

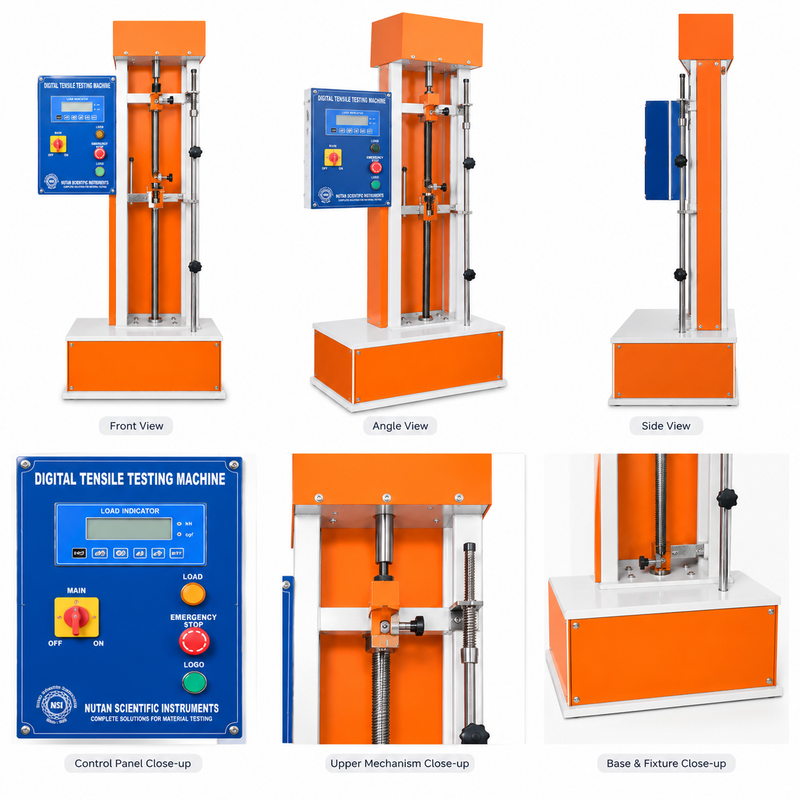

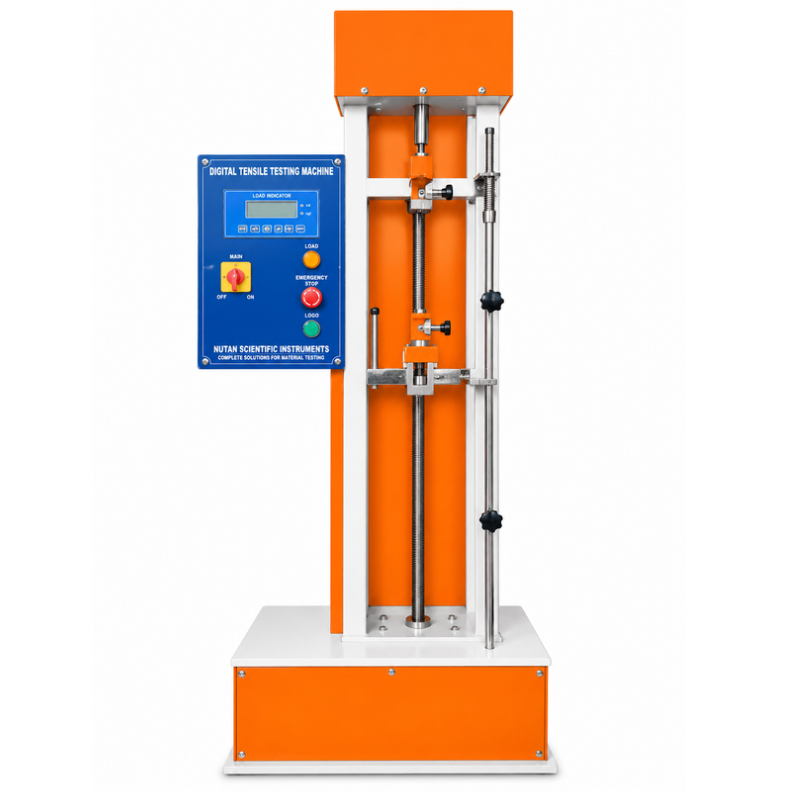

The Tensile Testing Machine is engineered for precise measurement of tensile strength, elongation, and mechanical performance of a wide range of materials. With a standard capacity of 250 Kgf (2.5 kN), it provides highly accurate and repeatable results, making it suitable for laboratories, quality control departments, and material testing facilities.
Equipped with a durable 3-phase Branded new motor, the machine offers smooth and stable operation. The user-friendly front control panel includes Forward, Reverse, and Stop push-button switches for easy movement control during testing. The supplied vice-type grips ensure firm and reliable sample holding under load.
For advanced testing needs, optional upgrades include variable speed control, elongation measurement, and a fully computerized model capable of generating digital test reports. Users can also opt for the other version for higher-capacity testing.
Sample preparation done via Dumbbell cutting die (as per IS:5831)
This Tensile Testing Machine is a robust and versatile solution for evaluating the strength and durability of materials such as metals, plastics, cables, polymers, rubber specimens, and various industrial components
