Description

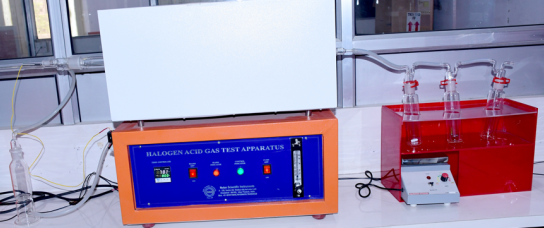

- Tube Furnace
Controlled by Digital PID Temperature Controller.
Heating element: Kanthal A-1 (7.5 Amp).
Power: Single Phase, 220V ±10% AC.
Heat resistant enamel coated.
As per IEC: 754 (Part-1) 1994.
- Air Generator
Provides constant air supply.
Works on balloon suction & compression principle (electromagnet-based).
Power: Single Phase, 220V ±10% AC.
- Air Flow Control Panel
Flow range: 100–600 cc/min.
Easy rotary knob control.
Mounted on acrylic panel.
Inlet & outlet at rear side.
As per IEC: 754 (Part-1) 1994.
- Combustion Tube & Boat Transfer Unit
Made of high-quality quartz glass with tight joints.
Boat transfer with platinum/constantan wire & U-type magnet.
One quartz boat included.
As per IEC: 754 (Part-1) 1994.
- Trap Bottles & Magnetic Stirrer
Two interconnected quartz bottles with ball & socket joints.
One bottle directly connected to combustion tube.
Magnetic stirrer with Teflon-coated knob for liquid mixing.
Mounted on attractive acrylic stand.
As per IEC: 754 (Part-1) 1994.
