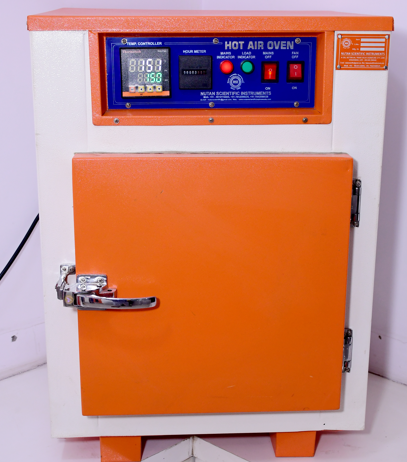

Salient Features:
Chamber Size: user defined
Chamber Construction: Double / Triple Walled, Inner and Outer Chamber of SS/GI/ MS/Al, made on user defined.
Temperature Range:
Ambient to 100oC / 150oC / 200oC / 250oC
Temperature Control:
Thermostat, On/Off, PI, PID, Microprocessor Air Circulation:With or without air circulation Construction:
Ovens are sturdy, with double walled construction. Inner chamber made of ALUMINIUM or STAINLESS STEEL sheet.
Outer chamber is made of stainless steel or galvanized steel or mild steel sheet and are duly powdercoated.
The gap between the walls is filled up with special grade glass wool for proper insulation to avoid heat losses.
Inner chamber has ribs for placing the shelves at convenient levels supplied with 2 or 3 removableshelves.
The oven door is mounted on heavy hinges with a handle. Door is duly insulated TemperatureControl:
Thermostat (Temperature Accuracy: + 3OC) On/Off Control (Temperature Accuracy: + 2OC) PID Control (Temperature Accuracy: + 1OC) Microprocessor control (Temp. Acc: :+ 0.5OC)
Control Panel: Comprising of switch to ON
/OFF the power, rotary switch to select high or low rates of heating, thermostat control knob and indicators for mains and thermostats supplied with cord & plug. Suitable to operate on 220 volts/50Hz, Single Phase, Ac supply.

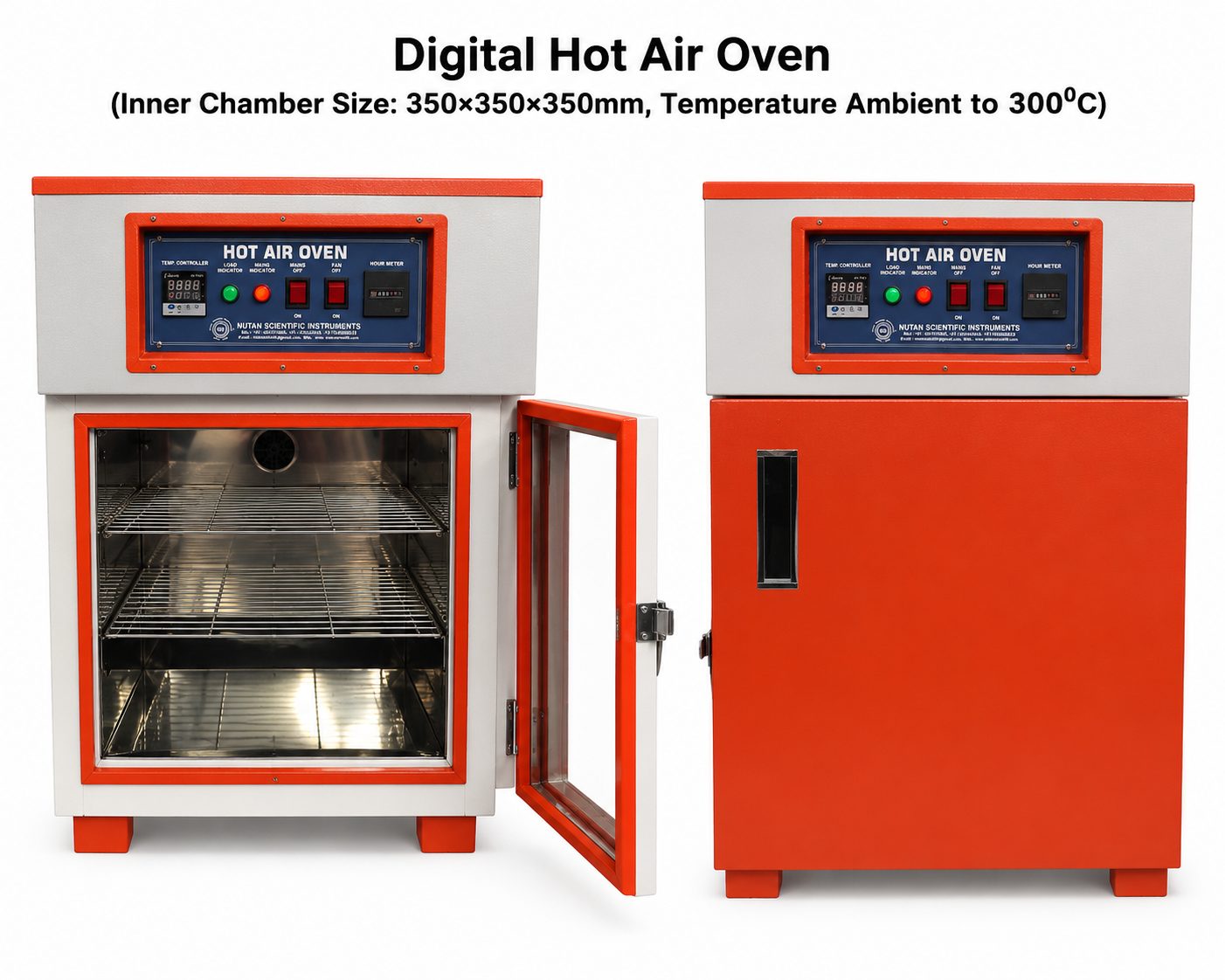

(Inner Chamber Size: 350×350×350mm, Temperature Ambient to 300⁰C)
Designed to maintain uniform Temperature across the complete chamber and provide controlled environment for Heating, Curing, Drying or testing various properties under elevated temperature.
