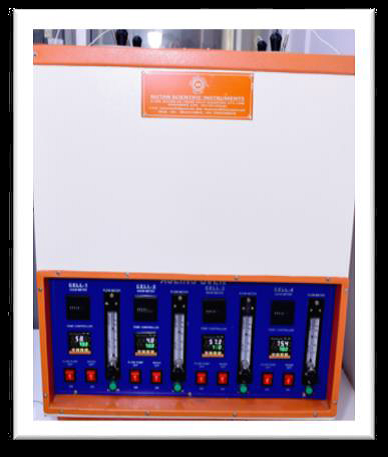

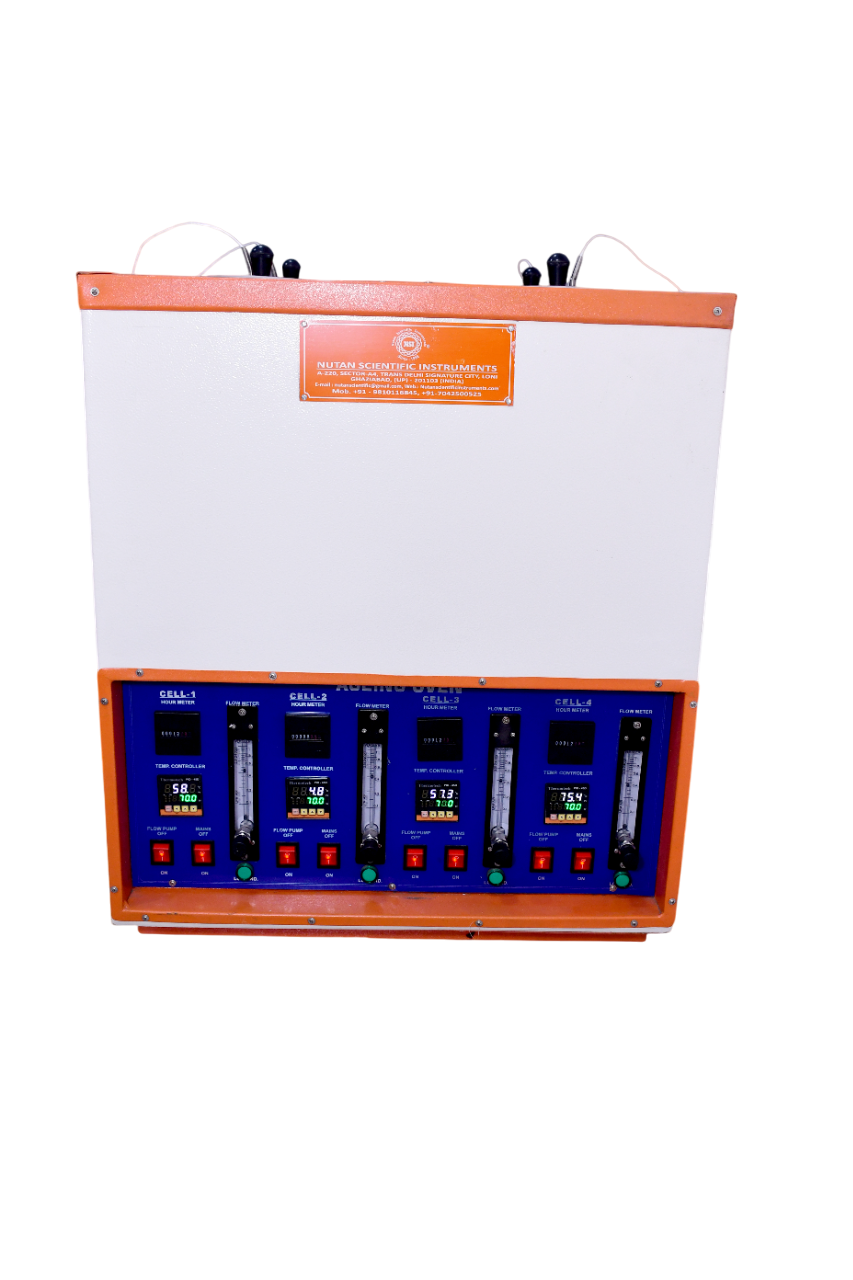

Digital Four Ageing Oven

Cell Size (Each): Approx. 300 mm height × 100 mm diameter
Temperature Range: Ambient to 150°C
Accuracy: ±1°C (with PID controller)
Temperature Resolution: 0.5°C
Control Accuracy: 1% of the total range
Air Changes: 8 to 20 air changes per hour (for proper ventilation)

Construction & Standards

Multi-Cell Design: 4 separate ageing cells for simultaneous testing

User-Friendly Design: Easy to operate with individual controls for each cell

Build Quality: Durable construction as per IS: 10810 (Part-11), IS: 5831, IS: 540, and international standards

Test Purpose:
Designed to test plastics and rubber materials under controlled heat and air conditions
to evaluate changes in tensile strength and elongation due to ageing.

Control Panel Features (For Each Cell):

PID Temperature Controller: For precise temperature control

Digital Display: Shows real-time temperature

Flow Meter: Ensures proper air circulation

Hour Meter: Tracks total test duration

Individual ON/OFF switches: For heater and air flow control

Additional Features:

Built-In Air Source: No need for external air compressor

Efficient Insulation: Maintains stable temperature inside the chamber

Independent Operation: Each cell can be used separately or simultaneously
