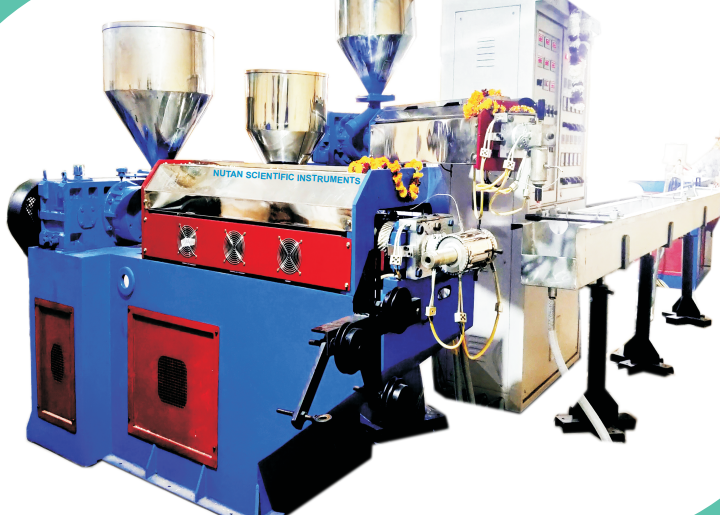

Barrier Screw Extruder
Barrier Screw Extruder - Image 2

Barrier Screw Extruder

Nutan Scientific Instruments Extruders for the processing of plastic play an important part worldwide, especially in the cable industry. The screw and barrel is a result of dedicated research providing high linear output with a wide range of speed & plasticization qualities. High performance ceramic heaters are fitted for electric heating & for cooling elements with powerful radial fans.

Category:

Description

Technical Characteristics
Models NUTAN 30 NUTAN 40 NUTAN 50 NUTAN 65 NUTAN 75 NUTAN 90 NUTAN 100 NUTAN 120 NUTAN 150
Screw Dia mm 30 40 50 65 75 90 100 120 150
L/D Ratio 26 26 26 26 26 26 26 26 26
Screw rpm max 120 120 100 100 90 90 80 80 70
Heating Load (KW) 6 12 15 20 26 30 35 45 56
Drive (KW) 3.7 5.6 11 18.5 22 30 45 60 90
Output (KGs/Hrs) 25 45 80 125 200 235 350 500 750
No. of Heating Zones 2 3 3 4 5 5 6 7 8
