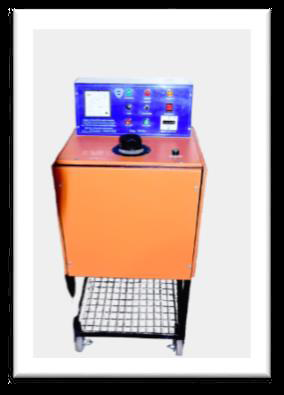

AC Spark Tester (0-15 kV/1 kVA)

Technical Specifications:

INPUT VOLTAGE: 230 Volts / 50Hz. AC Supply, Single Phase.

OUTPUT VOLTAGE: Up to 15 KV. CAPACITY: Up to 1 KVA

Transformer Type:- Double wound step-up transformer with CRGO core

CONTROL: Knob to control the AC output from zero to maximum.

ELECTRODE: Brass ball chain electrode is having a number of balls to ensure  100%  contact with the coated wire which passes through theelectrodes.

METERING: Voltmeter is provided in L.T. side, to indicate HV Output.

FAULT COUNTER: An electro-magnetic counter is provided to count the faults withresetting

Knob

Cooling:- Naturally air-cooled

Safety & Protection:

Fuse and ON/OFF switch for short circuit protection

HV auto-trip on unsafe access or cover opening

Zero-start interlock to prevent unintentional high-voltage application

Surge and overvoltage protection for sensitive components

Applications:

PVC Wire & Cable Manufacturing

Pin-hole testing in coated wires Quality control on extrusion lines
